Complete Transmitter TM701

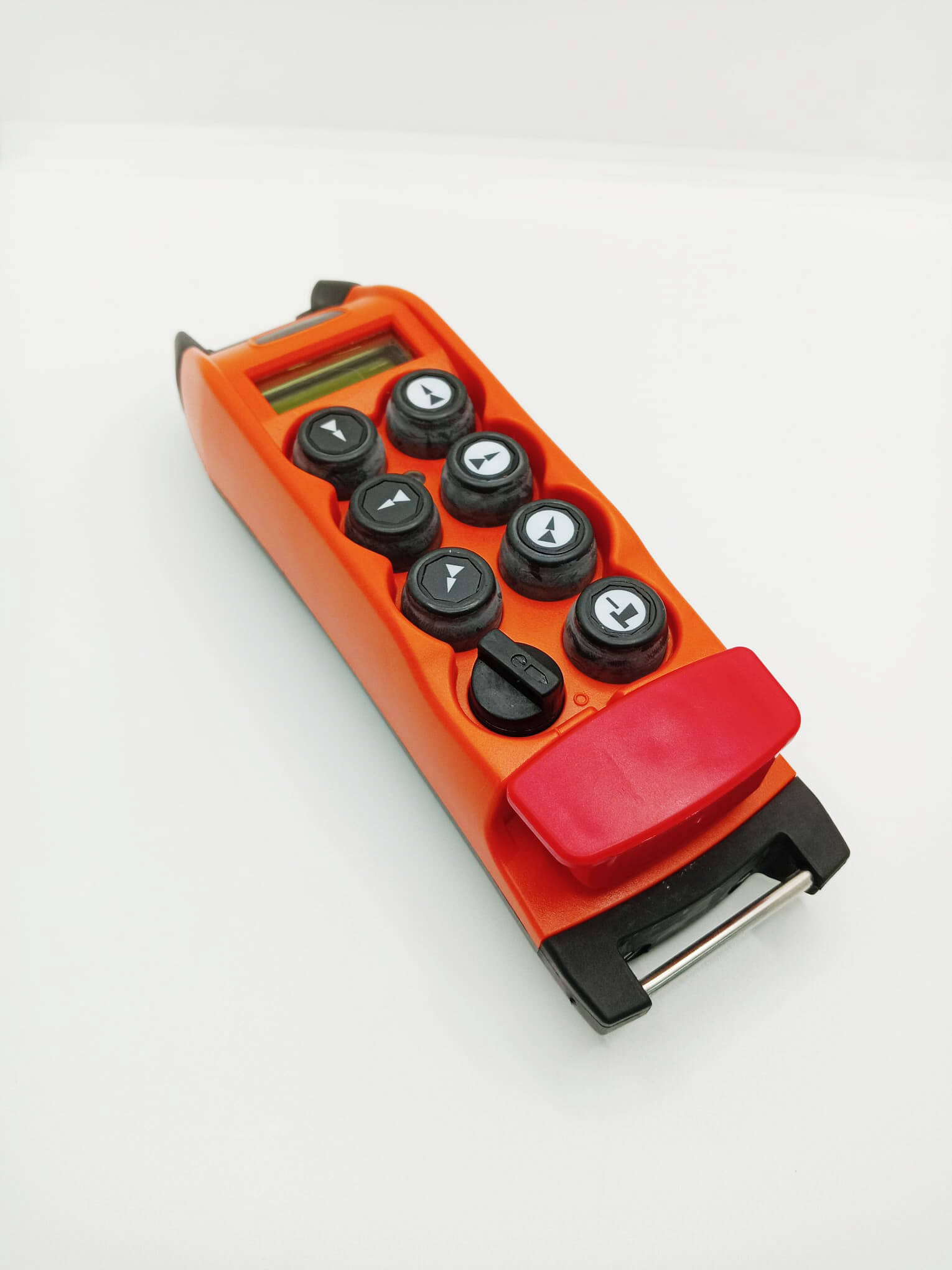

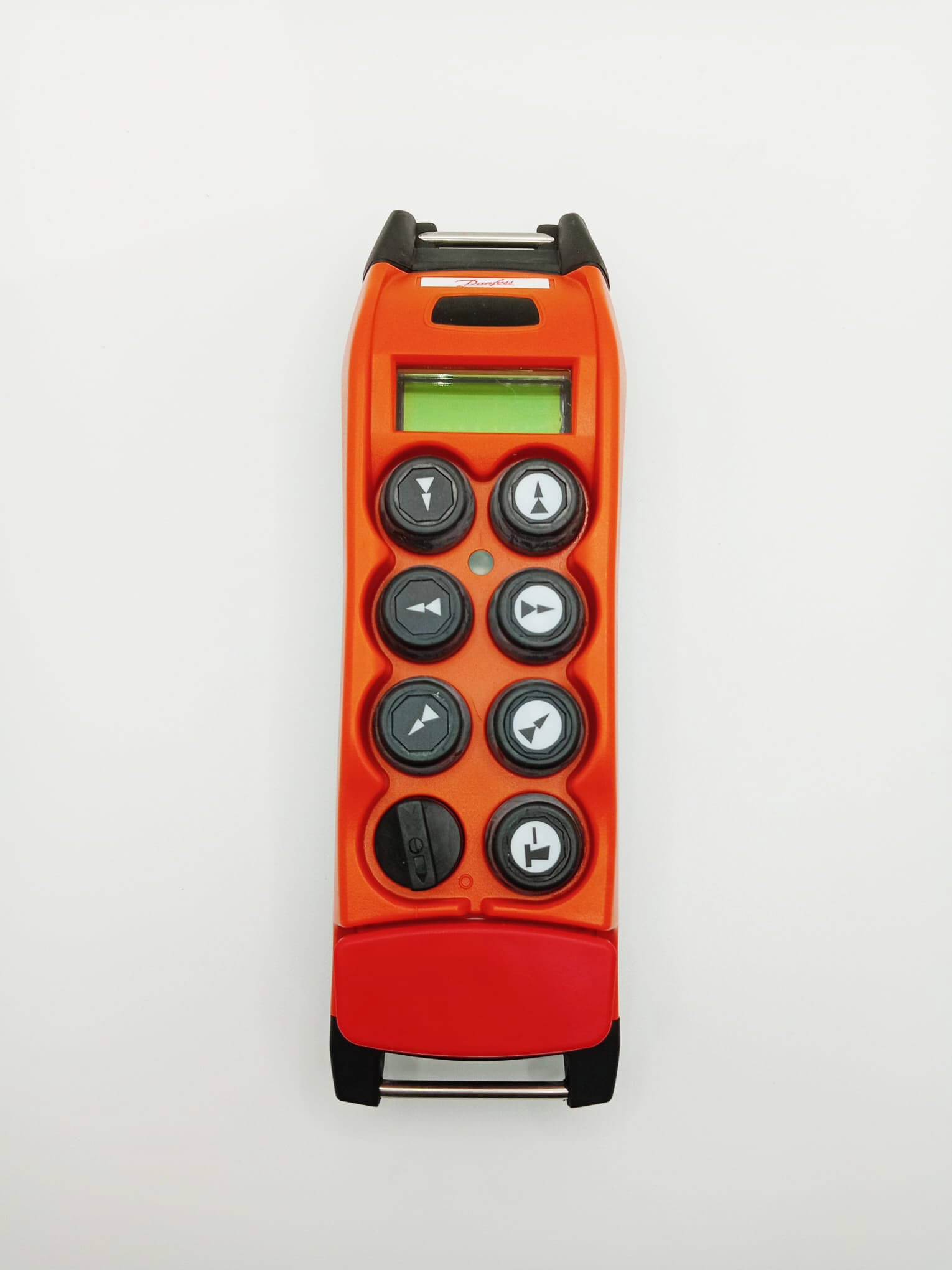

Genuine Ikusi TM701 six-button radio remote control transmitter (Danfoss TM70.1). This is the handheld transmitter unit only — for a complete system including receiver, see the TM701 complete system.

The TM701 features six single-speed pushbuttons for direct control of crane movements, a mushroom-head emergency stop, removable BT06K battery pack, and a robust IP65-rated enclosure. L-Tek frequency-hopping digital technology ensures reliable, interference-free communication with the R13 receiver.

A replacement TM701 transmitter must be paired to your existing R13 receiver before use. Pairing takes under two minutes — instructions are included, and Lumen Electronics technical support is available if needed.

Genuine Ikusi part, supplied from UK stock by an authorised distributor. For the eight-button variant, see the Ikusi TM702 transmitter.

Key Specifications

• Channels: 6 single-speed pushbuttons + 2 steps (start, stop/safety)
• Technology: L-Tek (frequency-hopping digital)
• Protection: IP65
• Emergency stop: Mushroom-head
• Battery: BT06K 4.8V NiMH (included)

Compatibility

• R13 L-Tek receiver
• BT06K replacement battery
• LE71 logic board
