Complete System TM701.13 L-TEK

The Ikusi TM701.13 L-TEK is a complete industrial radio remote control system comprising the TM701 six-button transmitter and the R13 L-Tek receiver. Designed for crane, hoist, and material handling applications, the TM701 system provides reliable wireless control with Ikusi's proven L-Tek digital technology.

This is a genuine Ikusi system supplied by Lumen Electronics, an authorised Ikusi/Danfoss distributor for the UK and Ireland. Every TM701 system ships factory-paired and ready to install — the transmitter and receiver are pre-programmed to communicate out of the box.

The TM701 transmitter features six single-speed pushbutton channels, giving operators direct control over core crane movements: up, down, east, west, north, south. The compact handheld design includes a mushroom-head emergency stop button, removable BT06K battery pack, and a robust IP65-rated enclosure built for industrial environments. The R13 L-Tek receiver mounts in the crane's electrical panel and accepts 24-48V AC/DC supply, with relay outputs rated for direct contactor switching.

L-Tek technology provides frequency-hopping spread spectrum communication for interference-free operation, even on sites with multiple radio systems. Each transmitter-receiver pair uses unique digital coding, eliminating the risk of cross-activation between systems.

For applications requiring more than six channels, consider the Ikusi TM702 system which offers eight pushbutton channels in the same form factor.

Supplied from UK stock with full technical support from Lumen Electronics.

Key Specifications

• Transmitter: TM701 (6 single-speed pushbuttons)
• Receiver: R13 L-Tek
• Technology: L-Tek (frequency-hopping digital)
• Transmitter protection: IP65
• Emergency stop: Mushroom-head, transmitter-mounted
• Battery: BT06K 4.8V NiMH (included)
• Receiver supply voltage: 24-48V AC/DC
• Receiver outputs: Relay contacts

Compatibility

• BT06K replacement battery
• CB70 battery charger (recommended)
• P70 spare pushbutton set
• R13 L-Tek replacement receiver

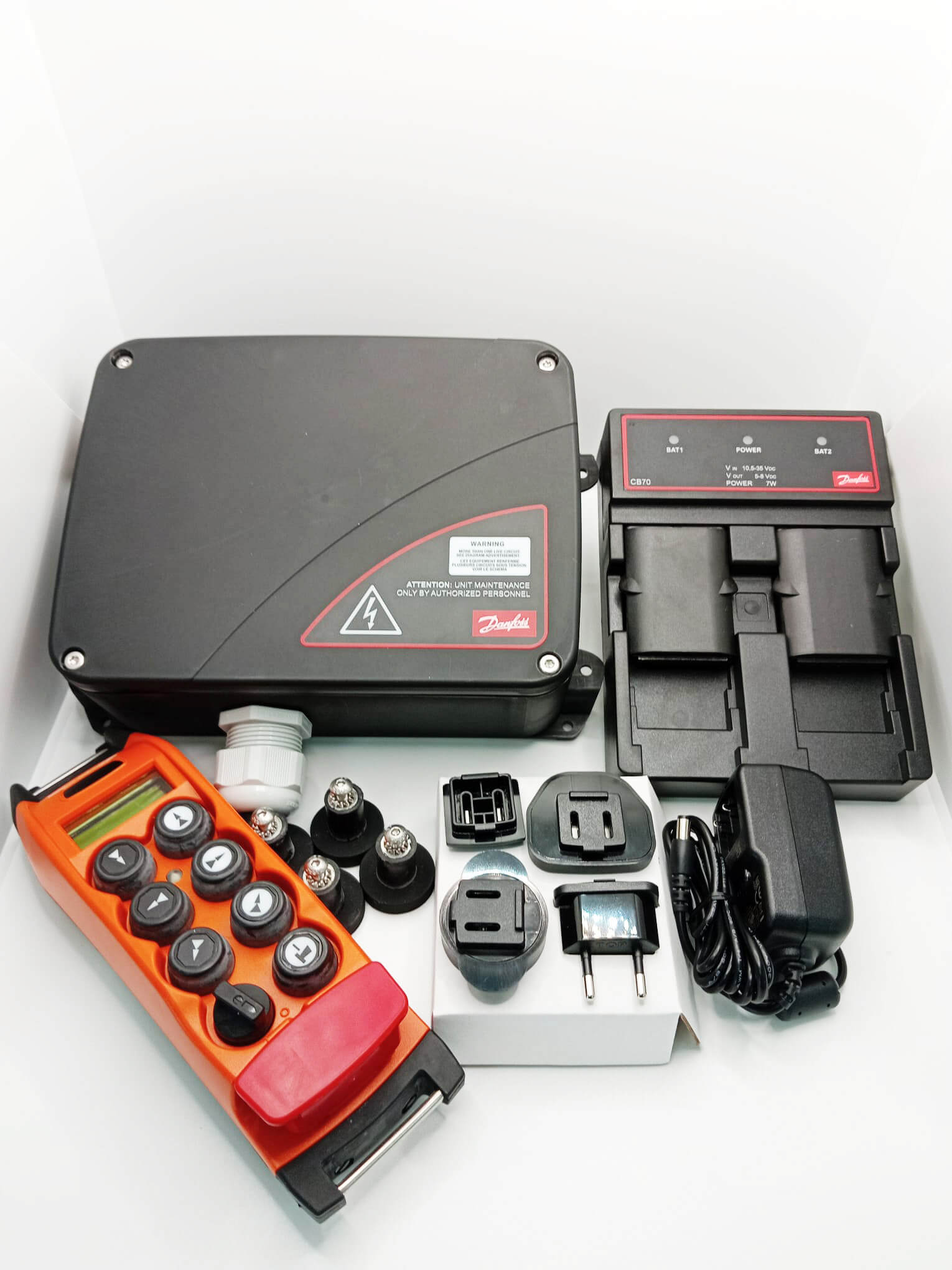

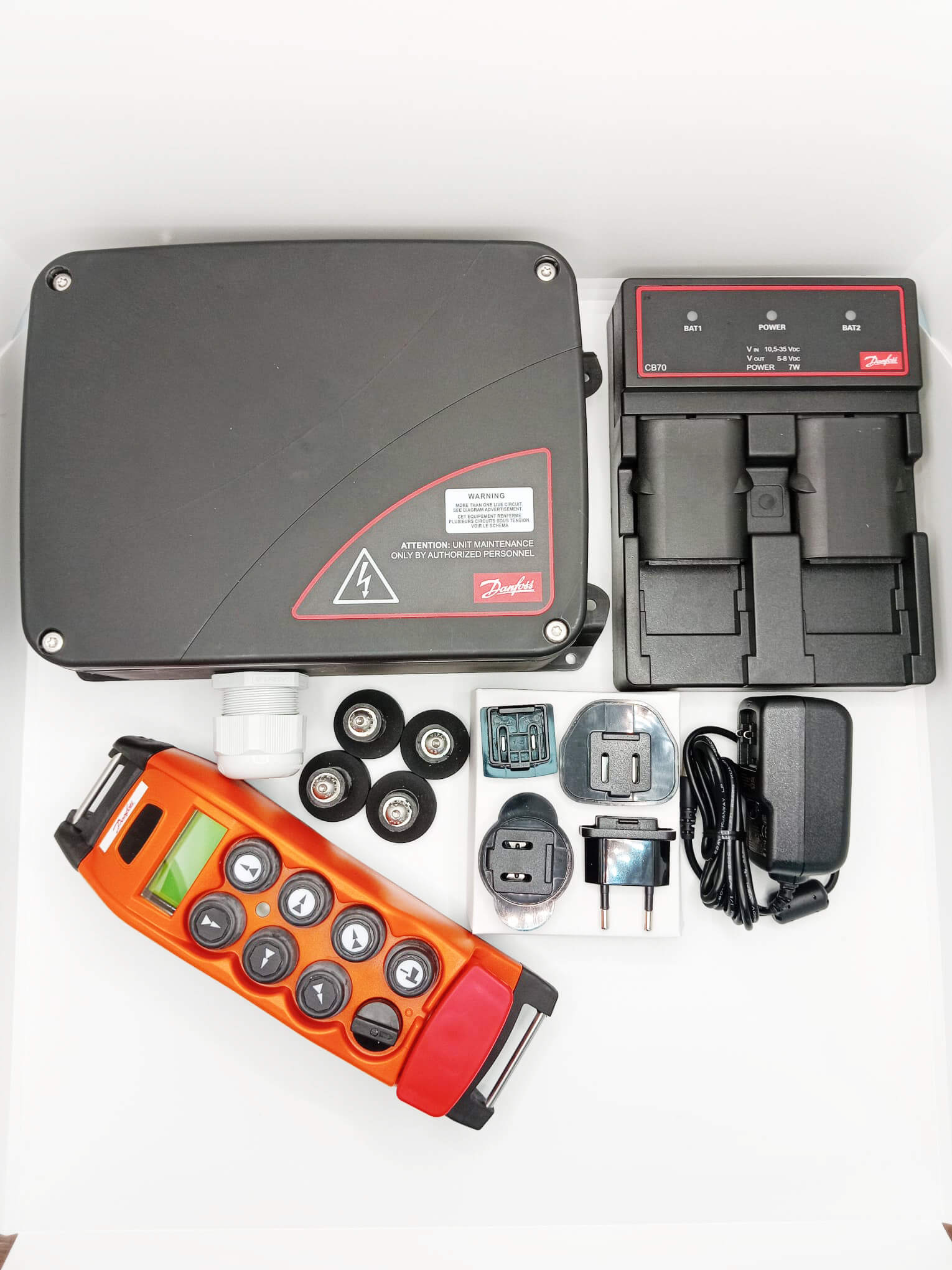

What's Included

• 1x Ikusi TM701 six-button transmitter
• 1x Ikusi R13 L-Tek receiver
• 1x BT06K battery pack (fitted)
• Transmitter wrist strap
• Receiver mounting hardware
