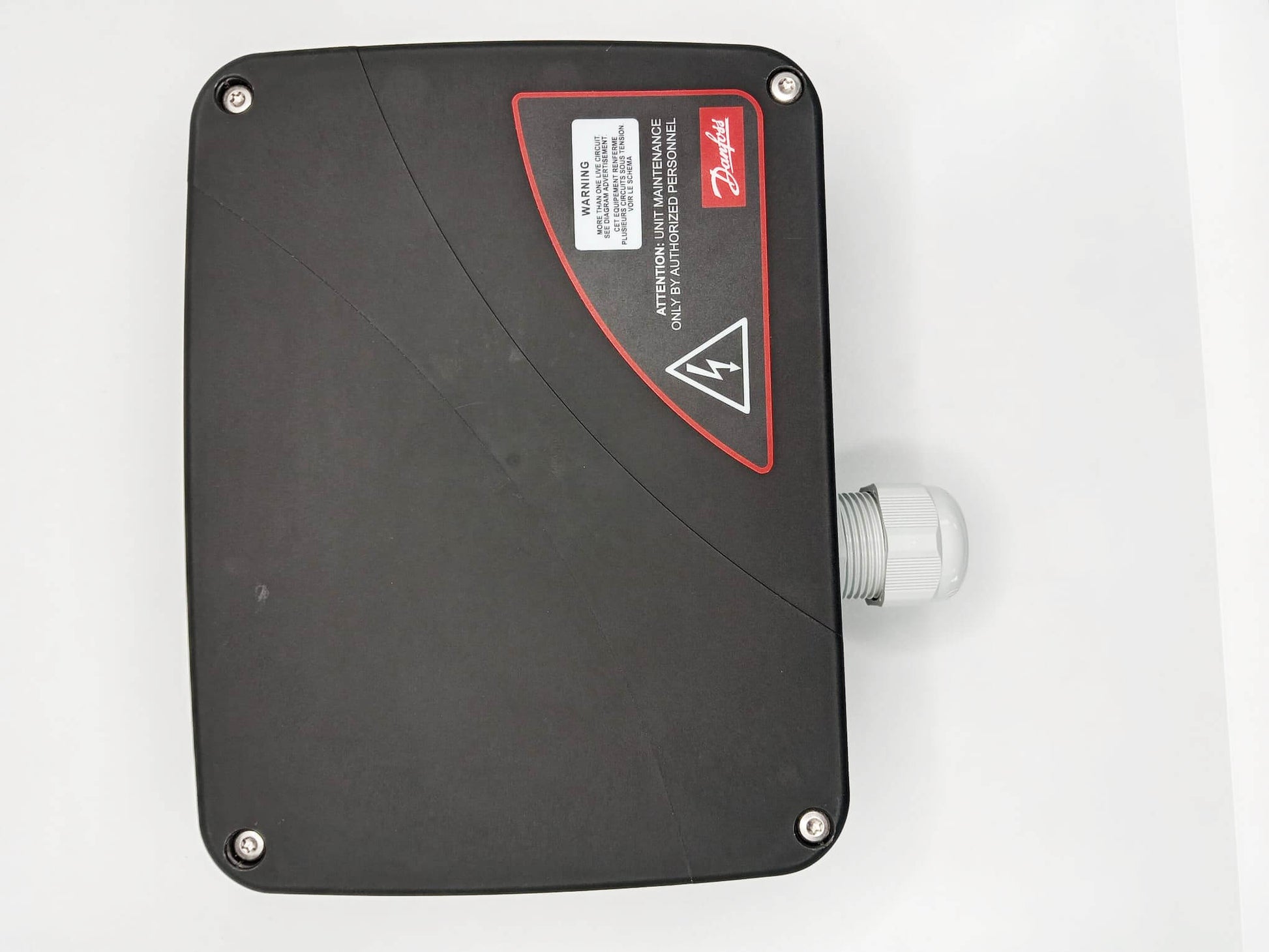

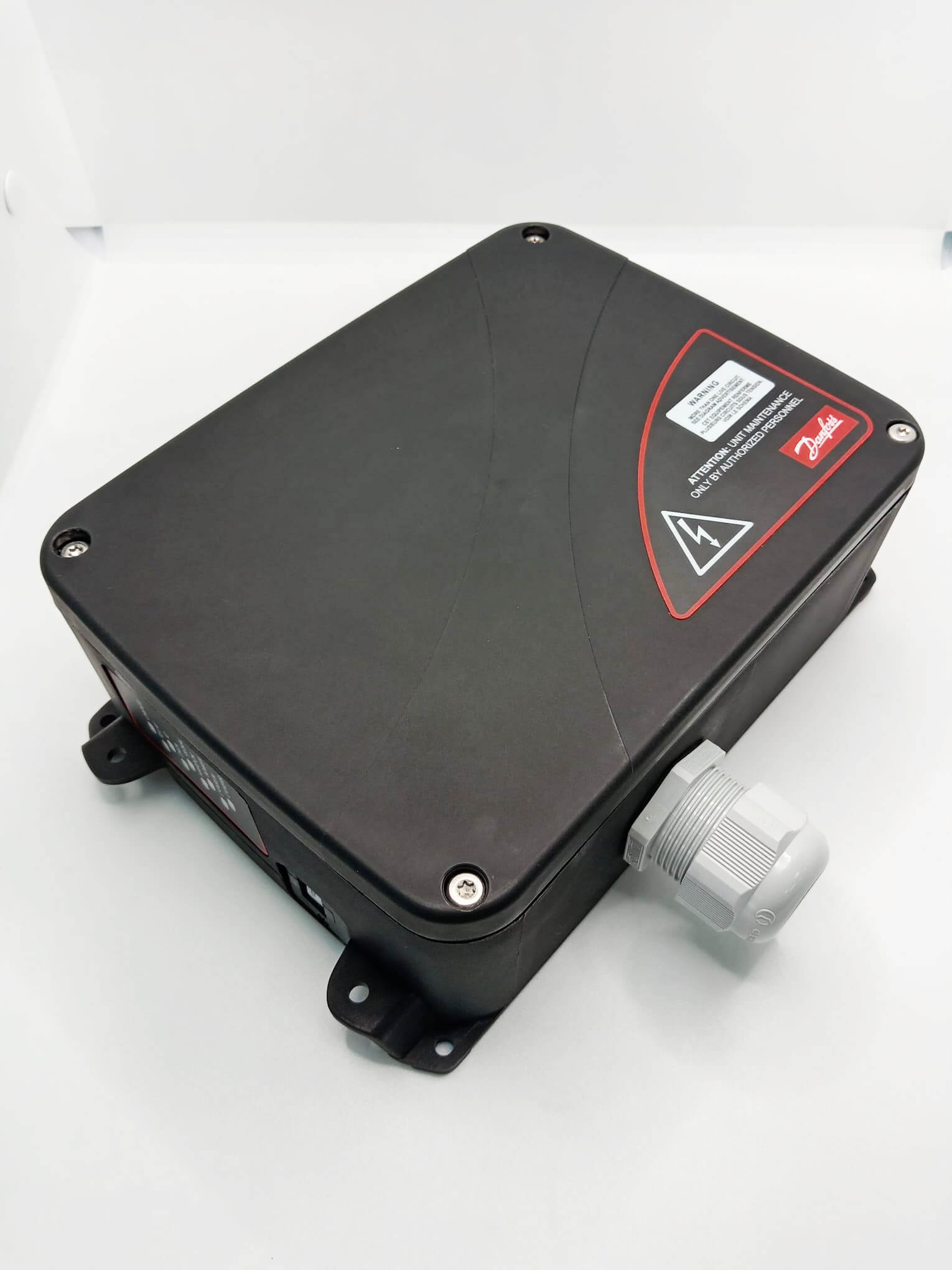

R13 L-Tek Receiver

The Ikusi R13 L-Tek is the receiver unit for the Ikusi TM70 series of industrial radio remote control systems. It pairs with both the TM701 (6-button) and TM702 (8-button) transmitters, making it the correct replacement receiver for any TM70-based installation.

Receiver failures are the most common reason for complete system downtime on older installations. Replacing just the R13 receiver — rather than buying an entire new TM701 or TM702 system — is significantly more cost-effective when the transmitter is still in good working order. The R13 L-Tek is a direct drop-in replacement: same mounting dimensions, same wiring connections, same relay output configuration as the original unit.

The R13 uses Ikusi's L-Tek digital communication technology with frequency-hopping spread spectrum, ensuring reliable operation even in electrically noisy industrial environments. It accepts a wide input voltage range of 24-48V AC/DC, covering the most common crane panel supply voltages. Relay outputs are rated for direct contactor switching without the need for intermediate relays in most applications.

A new R13 receiver must be paired (programmed) to the existing transmitter before use. Pairing is a straightforward procedure that takes under two minutes — full instructions are included, and Lumen Electronics technical support can walk you through it if needed.

Genuine Ikusi part, supplied from UK stock by an authorised distributor. For complete system replacements including a new transmitter, see the Ikusi TM701 or TM702 complete systems.

Key Specifications

• Technology: L-Tek (frequency-hopping digital)
• Supply voltage: 24-48V AC/DC
• Outputs: Relay contacts (rated for direct contactor switching)
• Compatible transmitters: TM701, TM702
• Pairing: Manual programming to transmitter (instructions included)
• Ikusi part reference: R13 L-Tek / R13 13RX

Compatibility

• Ikusi TM701 transmitter (6-button)
• Ikusi TM702 transmitter (8-button)
• All TM70 series installations using L-Tek technology
• LE71/LE72 logic boards (for advanced configurations)

What's Included

• 1x Ikusi R13 L-Tek receiver unit
• Mounting hardware
• Pairing/programming instructions
